Embossed aluminum sheet factory
Welcome to our professional embossed aluminum sheet factory. We are a leading manufacturer dedicated to providing high-quality aluminum solutions for industries worldwide. With years of experience and advanced production lines, we specialize in producing various patterns, including stucco, diamond, and orange peel designs.
As a dedicated embossed aluminum sheet factory, we focus on durability, aesthetics, and precision. Whether you need materials for refrigeration, construction, or decorative purposes, our products meet international quality standards.
1. What is an Embossed Aluminum Sheet?
An embossed aluminum sheet is a type of aluminum product that has been processed with a rolling mill to create raised patterns or textures on the surface. This process, often called “pattern rolling,” not only enhances the visual appeal of the metal but also increases its surface area and structural strength.
At our embossed aluminum sheet factory, we use high-precision rollers to ensure that every pattern is uniform and deep enough to provide excellent anti-slip and heat-dissipation properties.
2. Technical Specifications of Our Embossed Aluminum
To help you choose the right material, our embossed aluminum sheet factory provides a wide range of specifications. Below is a detailed table showing the technical parameters we offer.
Table 1: Standard Technical Specifications
| Parameter | Specification Details |
|---|---|
| Alloy Grades | $$1050$$, $$1060$$, $$1100$$, $$3003$$, $$3105$$, $$5052$$, $$5754$$, $$6061$$ |
| Temper | $$O$$, $$H12$$, $$H14$$, $$H16$$, $$H18$$, $$H22$$, $$H24$$, $$H26$$, $$H32$$ |
| Thickness | $$0.1 \text{ mm}$$ to $$6.0 \text{ mm}$$ |
| Width | $$20 \text{ mm}$$ to $$1600 \text{ mm}$$ |
| Length | $$500 \text{ mm}$$ to $$6000 \text{ mm}$$ (or coils) |
| Pattern Depth | $$0.05 \text{ mm}$$ to $$0.5 \text{ mm}$$ |
| Surface Finish | Mill finish, Color coated (PE/PVDF), Anodized |

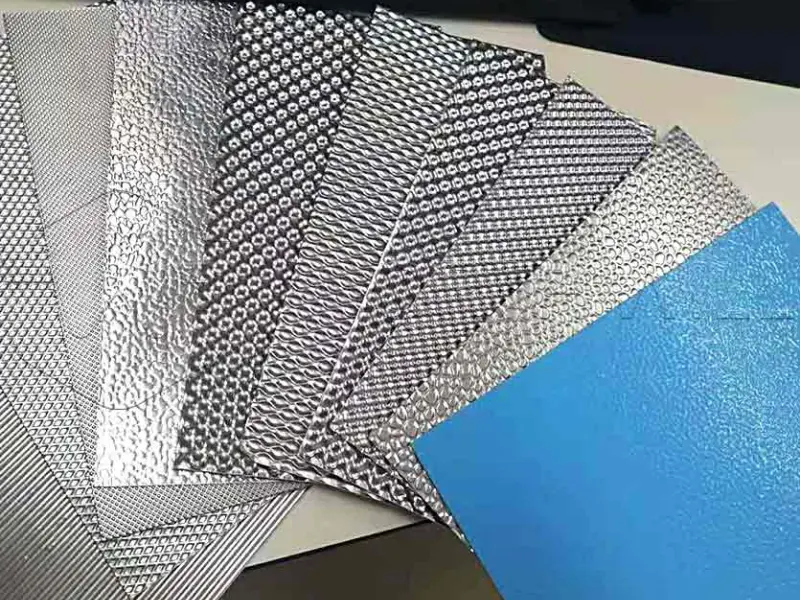

3. Popular Patterns Produced in Our Factory
Our embossed aluminum sheet factory produces several distinct patterns designed for specific industrial needs. Each pattern offers unique benefits in terms of friction, light reflection, and strength.
Table 2: Pattern Types and Descriptions
| Pattern Name | Visual Appearance | Primary Benefit |
|---|---|---|
| Stucco Embossed | Small, irregular bumps (Orange peel) | Excellent heat dissipation and scratch hiding |
| Diamond Pattern | Raised diamond shapes | Superior anti-slip properties and durability |
| Compass Pattern | Symmetrical line patterns | Industrial aesthetic and structural rigidity |
| Five-Bar Pattern | Five parallel raised ribs | Heavy-duty slip resistance for flooring |
| Bean Pattern | Small oval shapes | Decorative appeal and medium friction |
4. Key Advantages of Using Embossed Aluminum
Why should you source from an embossed aluminum sheet factory rather than using plain sheets? Here are the primary benefits:
- Increased Surface Area: Perfect for refrigerators and cold storage as it improves heat exchange.
- Anti-Slip Surface: The raised patterns provide grip, making it safe for flooring and ramps.
- Durability: The embossing process hardens the metal, making it more resistant to impacts and scratches.
- Aesthetic Appeal: It provides a modern, professional look for interior design and appliances.
- Low Maintenance: The textured surface hides fingerprints, water spots, and minor wear.
5. Applications of Embossed Aluminum Sheets
Our products are used in a vast array of sectors. As a global embossed aluminum sheet factory, we supply materials for the following applications:
Industrial and Commercial Uses:
- Refrigeration: Lining for refrigerators, freezers, and cold rooms.
- HVAC Systems: Air conditioning ductwork and heat shielding.
- Construction: Roofing, wall cladding, and ceiling panels.
- Transportation: Floors for buses, trucks, trailers, and toolboxes.
- Kitchenware: Backsplashes, cabinet liners, and decorative surfaces.
- Packaging: High-end packaging boxes and protective cases.
6. Deep Dive into Alloy Selections
Choosing the right alloy is crucial for your project’s success. Our embossed aluminum sheet factory offers various chemical compositions to suit different environments.
Table 3: Alloy Performance Comparison
| Alloy Series | Characteristics | Best Used For |
|---|---|---|
| $$1000$$ Series | $$99%+$$ Pure Aluminum, soft, excellent conductivity | Liners for refrigerators and lighting reflectors |
| $$3000$$ Series | Manganese added, rust-resistant, medium strength | Roofs, air conditioners, and humid environments |
| $$5000$$ Series | Magnesium added, high corrosion resistance | Marine applications and heavy-duty flooring |
| $$6000$$ Series | Silicon and Magnesium, very strong, heat-treatable | Structural components and architectural frames |
7. Our Production Process
As a leading embossed aluminum sheet factory, we follow a strict manufacturing flow to ensure the highest quality.
- Material Inspection: We test the raw aluminum ingots for chemical purity.
- Rolling: Plain sheets are passed through a series of rollers to achieve the desired thickness ($$t$$).
- Embossing: The sheet passes through a pair of pattern rollers under high pressure.
- Tension Leveling: This ensures the sheet is perfectly flat ($$f = 0$$) despite the pattern.
- Surface Coating (Optional): We can apply colors or protective films.
- Cutting and Slitting: Sheets are cut to the customer’s specific length ($$L$$) and width ($$W$$).
8. Digital Specifications: Sizing and Weight Calculation
To help your engineering team, our embossed aluminum sheet factory provides the formula for calculating the theoretical weight of your order.
The weight ($$m$$) can be calculated using the density of aluminum ($$\rho \approx 2.71 \text{ g/cm}^3$$):
$$m = \text{Thickness} \times \text{Width} \times \text{Length} \times \rho$$
Table 4: Common Sizes and Estimated Weights
| Thickness ($$mm$$) | Width ($$mm$$) | Length ($$mm$$) | Weight per Sheet ($$kg$$) |
|---|---|---|---|
| $$0.3$$ | $$1000$$ | $$2000$$ | $$1.63$$ |
| $$0.5$$ | $$1200$$ | $$2400$$ | $$3.90$$ |
| $$1.0$$ | $$1220$$ | $$2440$$ | $$8.07$$ |
| $$2.0$$ | $$1000$$ | $$2000$$ | $$10.84$$ |
| $$3.0$$ | $$1500$$ | $$3000$$ | $$36.59$$ |
9. Quality Control Standards
Our embossed aluminum sheet factory adheres to strict international standards to ensure you receive a flawless product. We perform the following tests:
- Visual Inspection: Checking for pattern consistency and surface defects.
- Thickness Tolerance Test: Ensuring the sheet meets the required $$+/- 0.02 \text{ mm}$$ limit.
- Adhesion Test: For color-coated embossed sheets to ensure the paint doesn’t peel.
- Salt Spray Test: Testing for corrosion resistance, especially for $$3000$$ and $$5000$$ series.
Table 5: Quality Standards Compliance
| Standard Code | Region | Application |
|---|---|---|
| ASTM B209 | USA | Standard Specification for Aluminum Alloy Sheets |
| EN 485 | Europe | Mechanical properties and tolerances |
| GB/T 3880 | China | General technical conditions for aluminum |
| ISO 9001 | Global | Quality Management System |
10. Packaging and Shipping from Our Factory
Safety during transit is a priority for our embossed aluminum sheet factory. We use seaworthy packaging to prevent moisture and physical damage.
- Inner: Waterproof paper and protective plastic film.
- Middle: Hardboard protection for corners and edges.
- Outer: Wooden pallets or wooden cases reinforced with steel straps.
- Weight per Pallet: Usually $$1000 \text{ kg}$$ to $$3000 \text{ kg}$$ depending on customer requirements.
11. Frequently Asked Questions (FAQ)
Q1: Can I get a custom pattern from your embossed aluminum sheet factory?
Yes. While we have standard patterns like stucco and diamond, we can develop custom rollers for large-scale orders to meet specific design requirements.
Q2: What is the lead time for an order?
Generally, for standard specifications, the lead time is $$15$$ to $$30$$ days. Custom coatings or non-standard alloys may take longer.
Q3: Is embossed aluminum more expensive than plain aluminum?
There is a slight premium due to the additional processing step in the embossed aluminum sheet factory. However, the added strength often allows you to use a thinner gauge, which can save money on total weight.
Q4: Can embossed aluminum be welded?
Yes, it can be welded using standard aluminum welding techniques like TIG or MIG, though the pattern may be flattened at the weld point.
12. Why We Are the Best Choice for Your Business
As an established embossed aluminum sheet factory, we combine competitive pricing with premium quality. We understand the needs of wholesalers, distributors, and manufacturers.
- Direct Factory Price: No middleman, ensuring you get the best ROI.
- Large Inventory: We keep a stock of common grades like $$1060$$ and $$3003$$ for quick delivery.
- Global Export Experience: We ship to over $$50$$ countries, handling all customs documentation.
- Sustainability: Our factory uses recycled aluminum content where possible to reduce environmental impact.
Top-Quality Embossed Aluminum Sheet Factory: Your Reliable Global Supplier
Finding the right embossed aluminum sheet factory is essential for the quality and longevity of your projects. Our factory offers a perfect blend of variety, technical precision, and customer service. From the heat-dissipating stucco patterns to the heavy-duty five-bar tread plates, we provide the aluminum solutions you need to succeed.
Contact our sales team today for a free quote and samples. Let us be your trusted partner in the aluminum industry.
