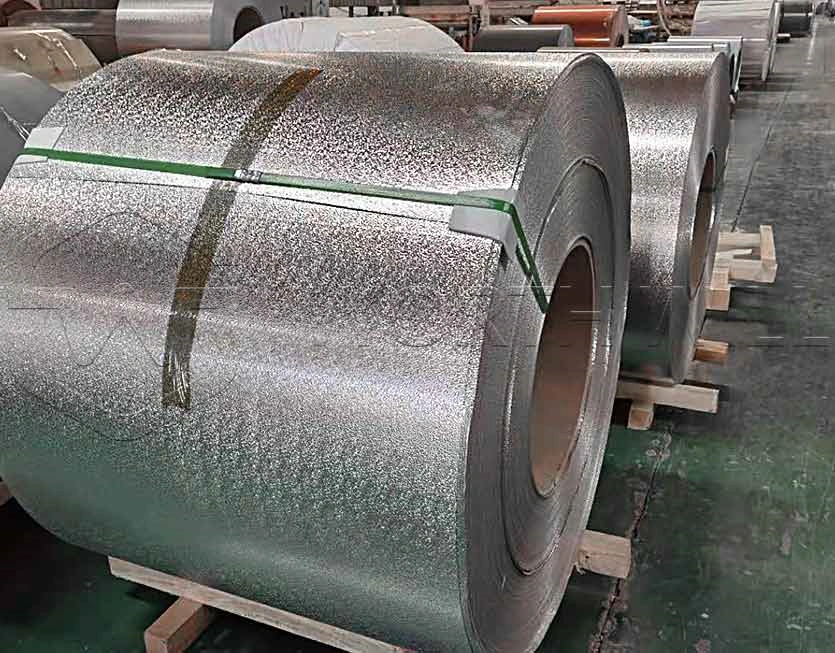

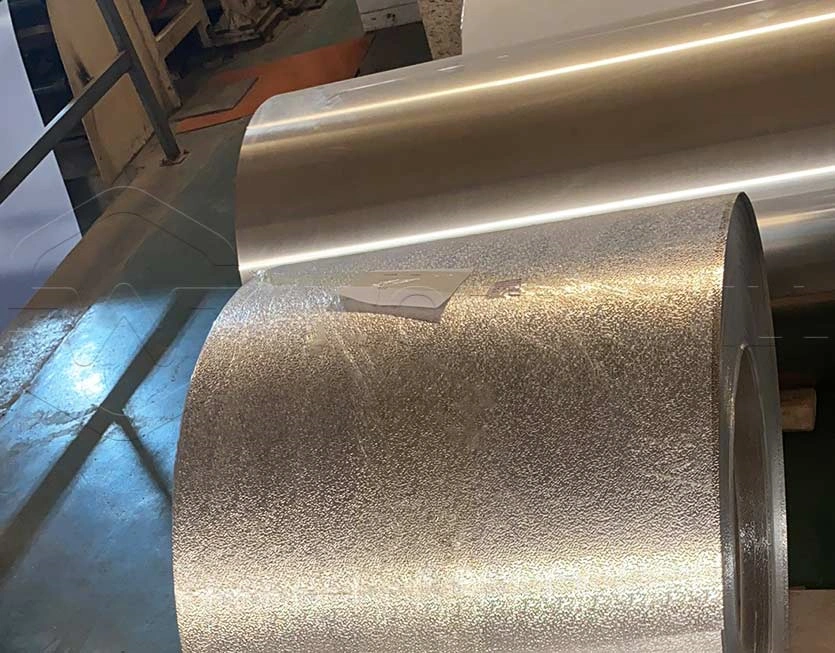

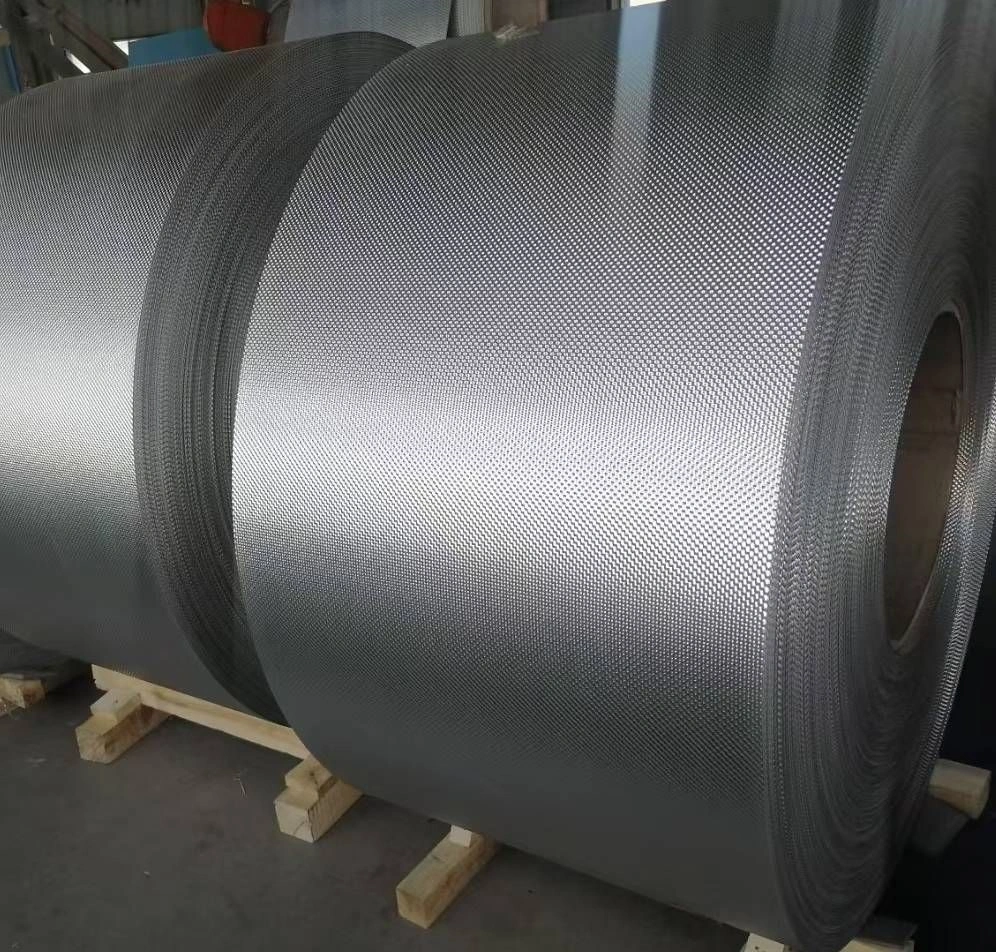

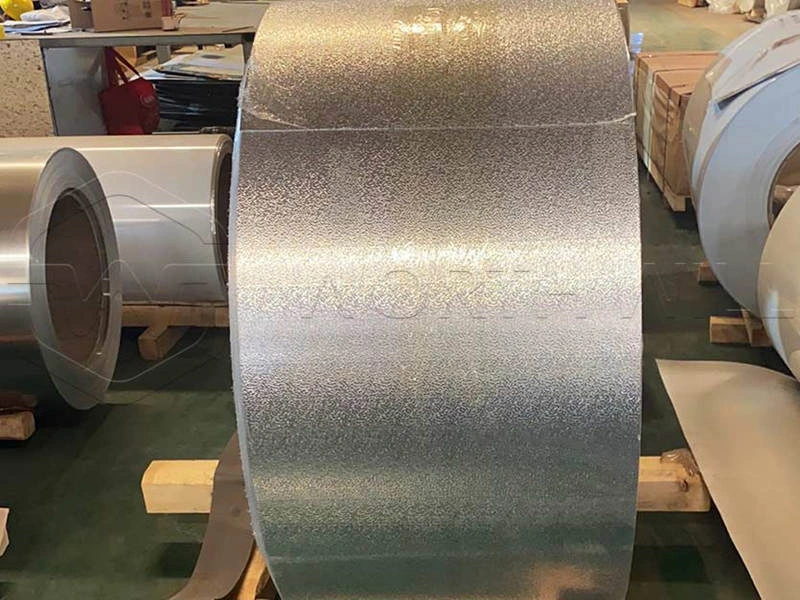

Stucco Embossed Aluminum Coil

What is Stucco Embossed Aluminum Coil?

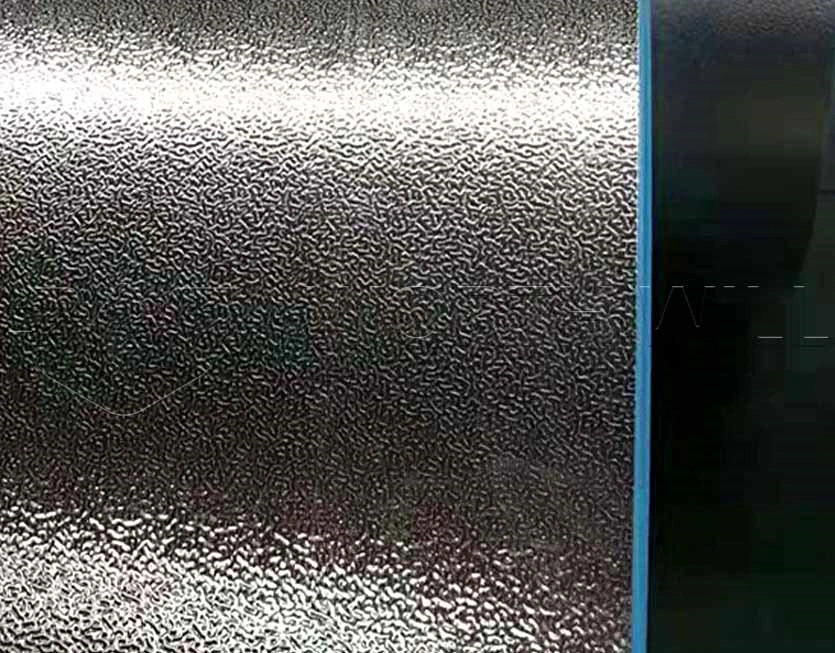

Stucco embossed aluminum coil features a textured surface mimicking traditional stucco finish, created through precision rolling. These coils combine aluminum’s lightweight durability (2.7g/cm³ density) with enhanced thermal performance. Pre-painted coils maintain color consistency for 20+ years without fading.

Properties of Stucco Embossed Aluminum Coil

The main properties include:

Lightweight but strong
Excellent corrosion resistance
Attractive textured finish
Easy to cut and install
Improves insulation protection
Available in coils and sheets

Property	Detail
Surface	Stucco embossed texture
Finish	Bright, anti-reflective
Durability	Resistant to scratches and dents
Corrosion Resistance	Suitable for humid and outdoor use
Weight	Lightweight, easy handling

Stucco Embossed Aluminum Coil Types

There are different stucco embossed aluminum coil types used in insulation projects. Each type has unique features and applications. Choosing the right one helps improve durability, energy efficiency, and cost performance.

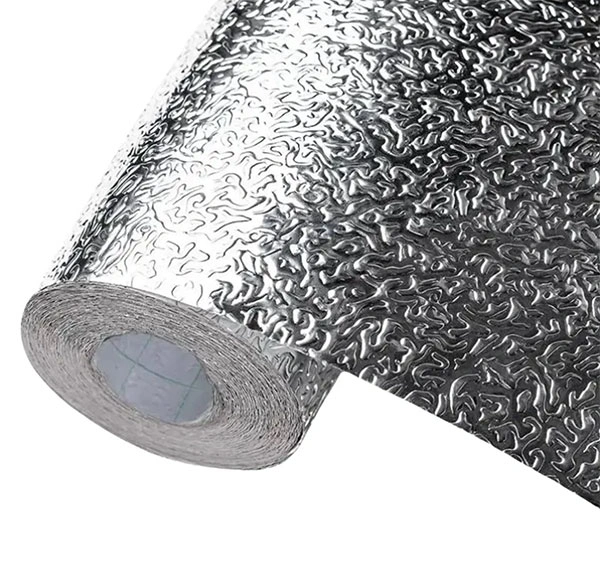

Embossed Aluminum Foil

Embossed aluminum foil is thin, lightweight, and flexible. It is mainly used for wrapping insulation materials, such as mineral wool or foam boards. The foil acts as a protective layer to reduce heat loss, prevent moisture, and extend the service life of insulation systems.

Embossed Aluminum Jacketing Roll

This type is designed for strong protection of pipelines and ducts. The stucco embossed surface improves mechanical strength and reduces reflectivity. It is often applied in industrial facilities, chemical plants, and HVAC systems. The jacketing roll provides resistance to corrosion and weather, ensuring long-term insulation performance.

Coated Aluminum Coil

Coated aluminum coil comes with PE or PVDF color coating. This finish enhances corrosion resistance, UV protection, and aesthetic appearance. It is ideal for roofing, wall insulation, and exterior pipelines where both durability and design matter. The coated surface also makes cleaning and maintenance easier.

China Embossed Aluminum Coil

China embossed aluminum coil is a cost-effective solution widely used in global projects. It provides reliable quality with competitive prices, making it suitable for large-scale insulation projects, cold storage facilities, and construction works. Many international buyers choose this type for its balance of quality and affordability.

Sizes and Thickness Options

Stucco embossed aluminum coils are produced in various widths, lengths, and thicknesses.

Thickness (mm)	Width (mm)	Length	Application
0.2 – 0.4	500 – 1250	Coil	Light cladding, insulation
0.5 – 0.7	600 – 1500	Coil or sheet	Cold rooms, wall panels
0.8 – 1.0	800 – 1600	Coil or sheet	Industrial insulation, roofs
1.2 – 1.5	1000 – 1600	Coil	Heavy-duty projects

Common Alloys for Stucco Embossed Aluminum

Different alloys provide different performance.

Alloy	Feature	Best Use
1060	High purity, good corrosion resistance	General cladding, jacketing
3003	Stronger, excellent rust resistance	Cold rooms, food storage
5052	High strength, marine grade	Coastal areas, chemical plants

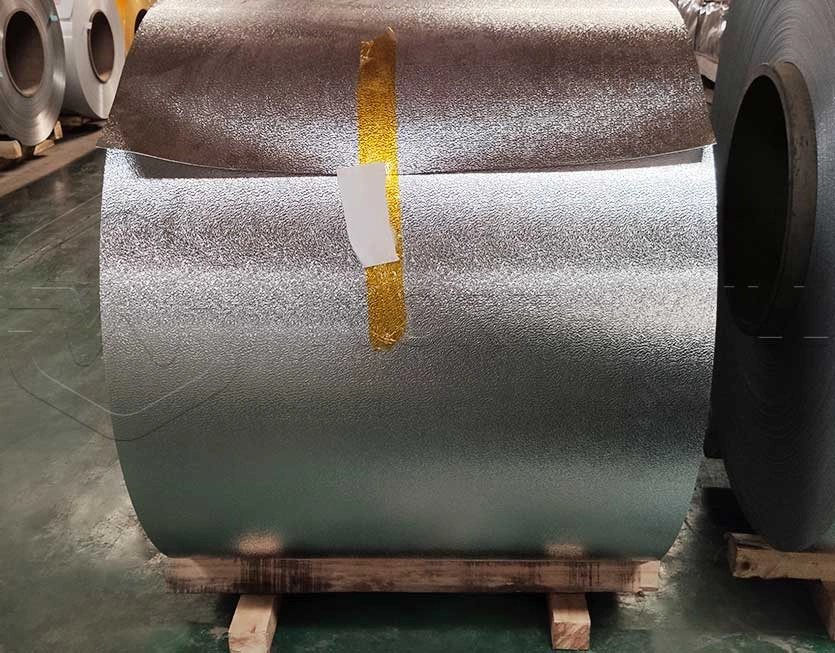

Packaging Options

Packaging Type	Description
Eye to Sky	Easy to load with crane
Eye to Wall	For container transport
Wooden Pallets	Safe sheet packaging
Protective Film	Prevents scratches

Key Material Properties

Thermal Efficiency: 85-90% solar reflectivity reduces cooling costs by 30%
Weather Resistance: Withstands -40°C to 150°C temperatures
Fire Safety: Class A fire rating (ASTM E84 certified)
Corrosion Protection: PVDF coating resists salt spray (3,000+ hours ASTM B117)
Eco-Friendly: 100% recyclable with 70% recycled content

Standard Size Specifications

Common stucco embossed aluminum coil dimensions:

Property	Range	Industry Standard	Common Applications
Thickness	0.4mm – 1.5mm	0.7mm	Wall cladding, roofing
Width	800mm – 1600mm	1250mm	Facade systems
Coil Weight	3-10 tons	5 tons	Large construction sites
Tensile Strength	100-150 MPa	130 MPa	Structural components

Top 7 Industrial Applications

Building & Construction

Curtain wall systems
Roofing sheets
Soffit panels

Transportation

RV siding
Truck trailer linings
Marine compartment walls

Specialty Uses

HVAC ductwork
Industrial freezer lining
Solar panel backing

Performance Comparison

Stucco aluminum vs other metals (per m²):

Characteristic	Aluminum Coil	Galvanized Steel	Copper
Weight	2.8kg	7.5kg	8.9kg
Corrosion Life	30+ years	15 years	50 years
Thermal Conduc	205 W/mK	50 W/mK	401 W/mK
Cost (USD)	$18-25	$12-18	$40-60

Installation Advantages

Easy Fabrication: Cut-to-size with standard metal tools
Lightweight Handling: 60% lighter than steel alternatives
Low Maintenance: Requires only annual water rinse
Versatile Finishing: Compatible with powder coating and anodizing

Why Choose Aluminum Coil?

Stucco embossed aluminum coil delivers:

Cost Savings: 25% lower lifetime cost vs. steel
Sustainability: LEED certification contribution
Design Flexibility: Available in custom widths/thicknesses
Global Compliance: Meets ASTM B209, EN 485, GB/T 3880 standards

FAQ About Stucco Embossed Aluminum Coil

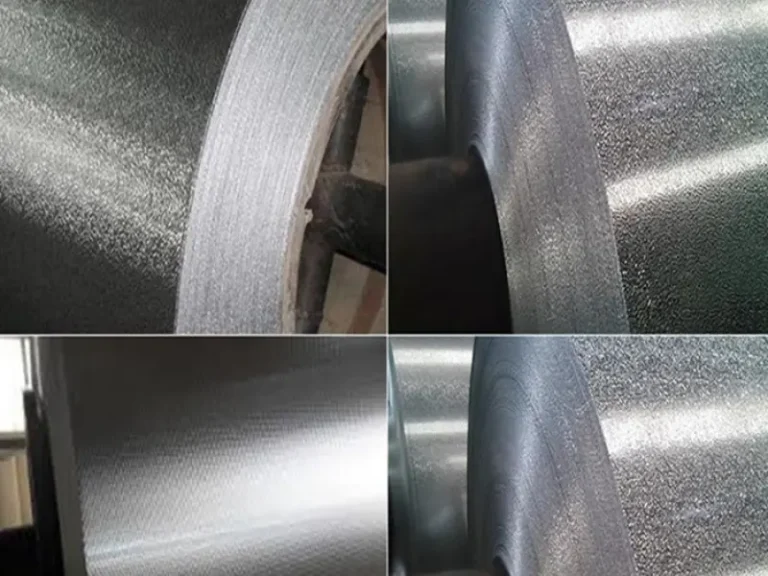

1. Why choose stucco embossed aluminum coil instead of plain aluminum?
The embossed surface is stronger, more durable, and hides scratches better.

2. What is the most common thickness?
Most cold room and insulation projects use 0.4–0.8 mm.

3. Can I order custom sizes?
Yes, coils and sheets can be cut to size according to your needs.

4. Which alloy is best for outdoor projects?
3003 and 5052 alloys are recommended for corrosion resistance.
