In the modern building industry, architects and contractors are constantly looking for materials that combine strength, beauty, and longevity. One material that stands out is embossed aluminum. The applications of embossed aluminum in construction have expanded significantly over the last decade due to its unique physical properties and cost-effectiveness.
From massive industrial warehouses to sleek modern skyscrapers, embossed aluminum provides a textured finish that hides imperfections, reduces glare, and increases structural rigidity.
1. Why Embossed Aluminum is Essential for Modern Buildings
Embossed aluminum is not just a decorative choice; it is a functional upgrade over plain aluminum sheets. The process of embossing creates a raised pattern on the surface which offers several mechanical advantages.
Key Benefits for Construction:
- Enhanced Rigidity: The textured pattern increases the “stiffness” of the sheet without adding extra weight.
- Glare Reduction: The diffused surface scatters light, making it ideal for large roofs and facades where sun reflection could be a problem.
- Scratch Resistance: The raised patterns effectively hide minor scratches and dents that occur during installation or weather events.
- Improved Adhesion: For composite panels, the embossed surface provides a better grip for adhesives and coatings.
2. Technical Specifications for Construction Grades
When considering the applications of embossed aluminum in construction, it is vital to understand the “digital” side of the material—the specific grades and measurements used in the industry.
Table 1: Standard Specifications for Construction Grade Aluminum
| Feature | Typical Specification |
|---|---|
| Common Alloys | 1060, 1100, 3003, 3105, 5052, 5754 |
| Temper | H14, H24, H16, H26, H18 |
| Thickness Range | 0.3 mm to 4.0 mm |
| Standard Widths | 1000 mm, 1220 mm, 1250 mm, 1500 mm |
| Standard Lengths | 2000 mm, 2440 mm, 3000 mm, or Coils |
| Pattern Depth | 0.05 mm to 0.35 mm |
| Surface Treatment | PVDF Coated, PE Coated, Anodized, or Mill Finish |
3. Major Pattern Types Used in Construction
Different patterns serve different purposes. Choosing the right pattern is a critical part of the applications of embossed aluminum in construction.

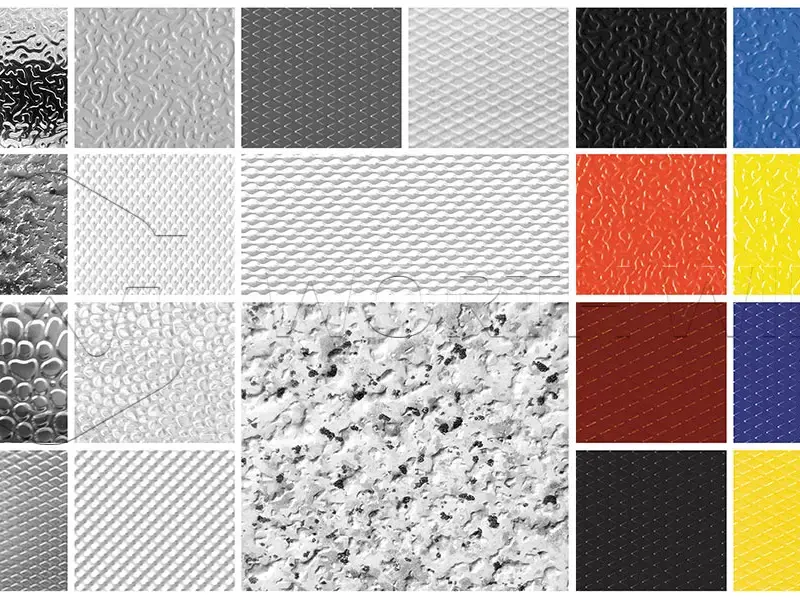

Table 2: Pattern Comparison and Usage
| Pattern Type | Technical Name | Best Construction Application |
|---|---|---|
| Stucco Pattern | Orange Peel | HVAC ducts, wall cladding, and cold storage lining |
| Diamond Pattern | Tread Plate | Industrial flooring, stairs, and loading ramps |
| Five-Bar Pattern | Quintet Pattern | Heavy-duty vehicle floors and workshop platforms |
| Spherical Pattern | Dimpled Sheet | Heat shields and acoustic ceiling panels |
| Compass Pattern | Symmetrical Ribs | Decorative architectural facades and gates |
4. External Applications: Roofing and Facades
One of the most visible applications of embossed aluminum in construction is on the exterior of buildings. Aluminum is naturally resistant to corrosion, and the embossed texture adds a layer of sophistication.
Exterior Usage Areas:
- Roofing Systems: Stucco embossed sheets are widely used for residential and industrial roofing. They prevent the “oil canning” effect (visible waviness) common in flat metal roofs.
- Curtain Walls: Large commercial buildings use embossed panels for exterior cladding to create a modern, matte look.
- Gutter Systems: Embossed textures help water flow more efficiently while resisting debris buildup.
- Soffits and Fascia: Used for the underside of roof overhangs to provide ventilation and a clean finish.
Table 3: Performance of Embossed Aluminum in Exterior Environments
| Environmental Factor | Performance Level | Benefit to Construction |
|---|---|---|
| UV Resistance | High (with PVDF) | Colors won’t fade for 20+ years |
| Corrosion Resistance | Excellent | Suitable for coastal/marine projects |
| Heat Reflection | 80%−90% | Reduces cooling costs in summer |
| Wind Load Capacity | Increased | Texture adds strength against high winds |
5. Interior Applications: Protection and Design
Inside a building, the applications of embossed aluminum in construction focus on hygiene, durability, and aesthetics.
Interior Usage Areas:
- Cold Storage and Clean Rooms: Stucco embossed aluminum is the industry standard for walk-in freezers and medical clean rooms because it is easy to sanitize.
- HVAC Ducting: The increased surface area of embossed aluminum improves the thermal efficiency of air conditioning ducts.
- Elevator Interiors: Used on the walls of freight elevators to protect against damage from carts and heavy luggage.
- Acoustic Ceilings: Perforated and embossed aluminum panels help absorb sound in large halls and airports.

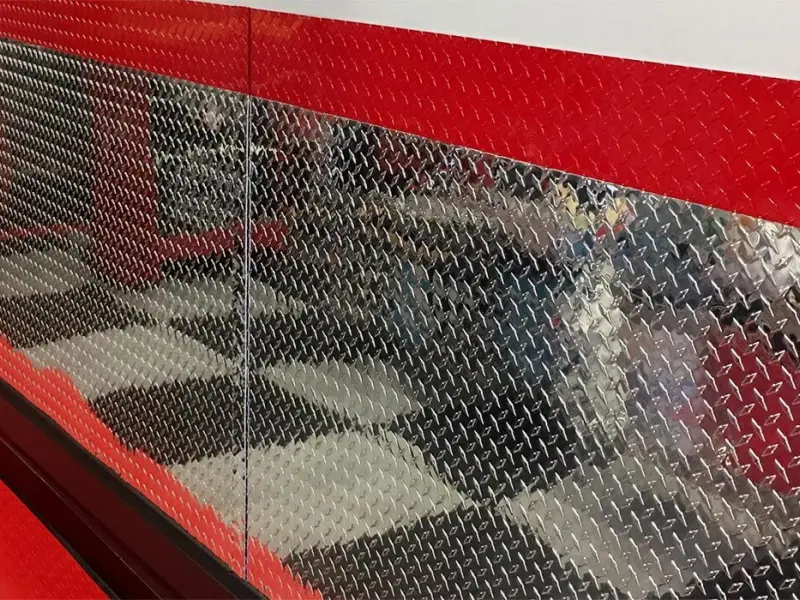

- Wall Protectors: Installed in high-traffic hallways (like hospitals) to prevent damage from beds and trolleys.
6. Flooring and Safety Applications
Safety is a top priority in any construction project. The anti-slip applications of embossed aluminum in construction are found in almost every industrial facility.
Table 4: Safety Flooring Specifications
| Pattern | Slip Resistance Rating | Common Use Case |
|---|---|---|

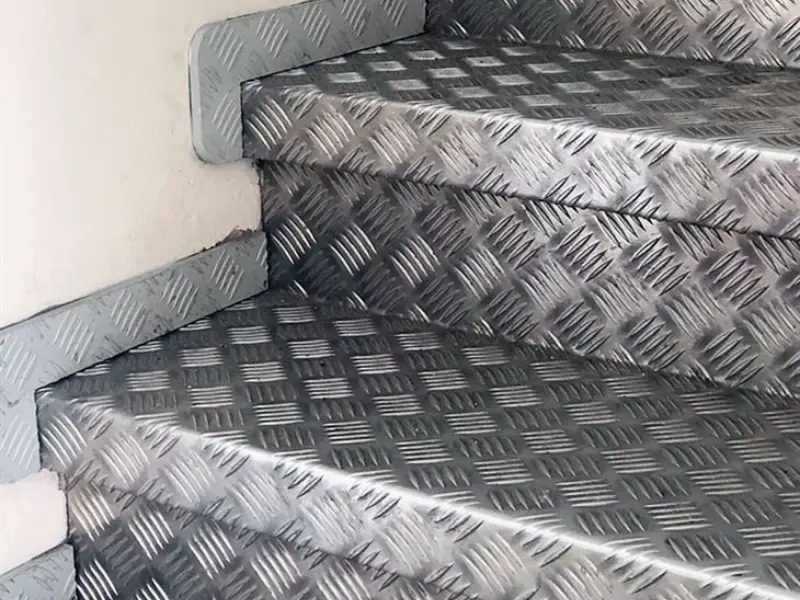

| Diamond Plate | R10 to R11 | Fire escapes and utility trailers |
| Five-Bar Plate | R12 | Oil platform walkways and factory floors |
| Small Bean Pattern | R9 | Interior stairs in commercial buildings |
- Ramps: Providing safe access for wheelchairs and equipment.

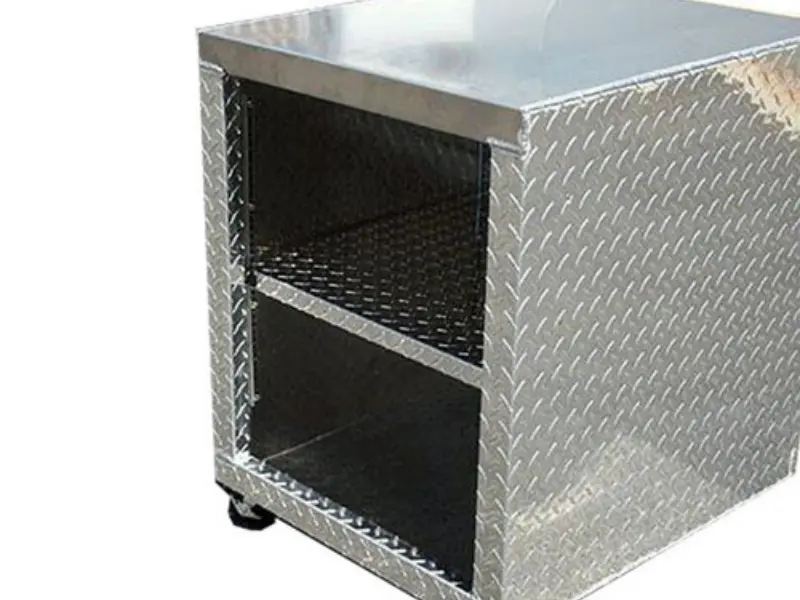

- Toolboxes: Built-in storage units for construction vehicles.
- Manhole Covers: Lightweight alternatives to heavy steel covers in non-traffic areas.
7. Numerical Analysis: Weight vs. Strength
In construction, weight (W) matters for structural load calculations. Embossed aluminum allows for thinner sheets to be used while maintaining the same rigidity as thicker plain sheets.
The theoretical weight (M) is calculated as:
M=Area×Thickness×2.71 g/cm3
Table 5: Weight Comparison for Common Construction Sizes
| Thickness (mm) | Dimensions (mm) | Weight (Plain kg) | Weight (Embossed kg) |
|---|---|---|---|
| 0.5 | 1220×2440 | 4.03 | 4.03 |
| 0.8 | 1220×2440 | 6.45 | 6.45 |
| 1.2 | 1220×2440 | 9.68 | 9.68 |
| 2.0 | 1220×2440 | 16.13 | 16.13 |
Note: While the weight is the same, the “Effective Rigidity” of a 0.8 mm embossed sheet can be equivalent to a 1.0 mm plain sheet.
8. Sustainability and Green Building (LEED)
As global construction shifts toward “Green Buildings,” the applications of embossed aluminum in construction help developers earn LEED points.
- Recyclability: Aluminum is 100% recyclable without losing its properties.
- Energy Efficiency: High solar reflectance index (SRI) values help reduce the “Urban Heat Island” effect.
- Lightweight Transit: Reduced weight means lower carbon emissions during the transportation of materials to the job site.
9. Installation and Maintenance Tips
To maximize the benefits of the applications of embossed aluminum in construction, proper installation is required.
- Directional Consistency: When installing stucco or diamond patterns, ensure all sheets are oriented in the same direction for a uniform look.
- Thermal Expansion: Aluminum expands and contracts with temperature changes. Leave a gap of approximately 1 mm to 2 mm between large panels.
- Cleaning: Use a mild detergent and water. Avoid abrasive tools that could flatten the embossed pattern.
- Cutting: Use a fine-toothed circular saw or shears specifically designed for aluminum to prevent edge burrs.
10. Comparative Material Analysis
How does embossed aluminum compare to other common construction materials?
Table 6: Embossed Aluminum vs. Stainless Steel vs. Galvanized Steel
| Feature | Embossed Aluminum | Stainless Steel | Galvanized Steel |
|---|---|---|---|
| Weight | Very Light | Heavy | Heavy |
| Corrosion Resistance | High | Very High | Medium |
| Ease of Cutting | Easy | Difficult | Medium |
| Cost | Medium | High | Low |
| Aesthetics | Excellent (Textured) | Shiny/Industrial | Dull/Zinc finish |
11. Frequently Asked Questions
Q1: Does the embossing process affect the aluminum’s alloy properties?
No. Embossing is a mechanical process. The chemical composition of the alloy (e.g., 3003 or 5052) remains the same, though the work-hardening makes the sheet slightly stiffer.
Q2: Can I paint embossed aluminum?
Yes. Many applications of embossed aluminum in construction involve color-coated sheets. It is best to buy “Pre-painted” coils from the factory to ensure the paint reaches the “valleys” of the pattern evenly.
Q3: Is stucco embossed aluminum good for insulation?
While aluminum itself is a conductor, the stucco pattern creates a small air boundary layer that helps slightly with thermal dispersion. It is most effective when used as a jacket over insulation materials like mineral wool.
12. The Future of Embossed Aluminum
The applications of embossed aluminum in construction are only limited by an architect’s imagination. Whether it is used to create a non-slip floor in a busy factory, a heat-reflecting roof for a tropical villa, or a stylish wall in a modern office, this material delivers.
By choosing embossed aluminum, you are investing in a material that is:
- Economical due to its long life and low maintenance.
- Practical due to its weight-to-strength ratio.
- Sustainable for future generations.
If you are planning a new construction project, consider the versatility of embossed aluminum. It is a smart, modern solution for the challenges of today’s building environment.
