When you need a floor that is both safe and tough, you look for aluminum tread plate. Many people call it “diamond plate” or “checker plate.” Its main feature is the raised pattern on one side. This pattern provides a non-slip surface.
Because every project is different, finding the right custom aluminum tread plate sizes and patterns is essential. Whether you are building a tool box or a ship deck, the right choice saves money and time.
Popular Aluminum Tread Plate Patterns
Patterns are not just for looks. They determine how much grip the plate provides and how easy it is to clean.
1. Five-Bar Pattern (Willow Leaf)
This is the most common pattern worldwide. It features five small parallel bars arranged in a “willow leaf” style. It offers excellent anti-slip properties from all directions and the standard for industrial flooring.
2. One-Bar Pattern (Diamond)
Often called “propeller plate” or “diamond plate.” It has a single raised bar. This pattern looks very clean and modern. It is popular for decorative wall panels and fire truck exteriors.
3. Three-Bar Pattern
This is a middle-ground option. It is less common than the five-bar but offers a unique aesthetic for custom furniture and store fittings.
4. Compass and Lentil Patterns
These are specialty patterns. The lentil pattern has small, grain-like bumps. These are often used for light-duty decorative applications where a subtle texture is needed.
Technical Specifications: Alloys and Tempers
The strength of your custom aluminum tread plate depends on the metal inside. Different alloys handle salt, weight, and bending differently.
Common Aluminum Alloys
| Alloy Type | Strength | Corrosion Resistance | Best Use |
|---|---|---|---|
| Alloy 1050 / 1060 | Low | High | Decorative trim, light covers. |
| Alloy 3003 | Medium | Good | Most common; used for toolboxes and vehicle trim. |
| Alloy 5052 | High | Excellent (Marine Grade) | Boat decks, docks, and chemical plants. |
| Alloy 6061 | Very High | Fair | Structural platforms and heavy-duty ramps. |
Material States (Tempers)
| Temper | Description | Why it matters |
|---|---|---|
| H114 | Natural state after rolling. | Standard for 3003 and 5052 tread plates. |
| H22 / H24 | Partially annealed. | Better for plates that need to be bent into shapes. |
| T6 | Solution heat treated. | Used for 6061 to provide maximum structural hardness. |
Custom Sizes and Digital Specifications
We offer a wide range of custom aluminum tread plate sizes to reduce waste during your installation.
| Feature | Standard Range | Custom Option |
|---|---|---|
| Thickness (Base) | 1.0mm to 10.0mm | Up to 12.0mm |
| Width | 1000mm, 1220mm, 1500mm | Cut to width available |
| Length | 2000mm, 2440mm, 3000mm | Up to 6000mm |
| Pattern Height | 0.5mm to 2.0mm | Fixed by roller design |
Main Applications for Tread Plates
Where will you see our custom aluminum tread plate? It is everywhere in modern industry.
- Transportation Industry:
- Truck bed liners and side steps.
- Ambulance and fire engine interiors.
- Trailer flooring and loading ramps.
- Building and Construction:

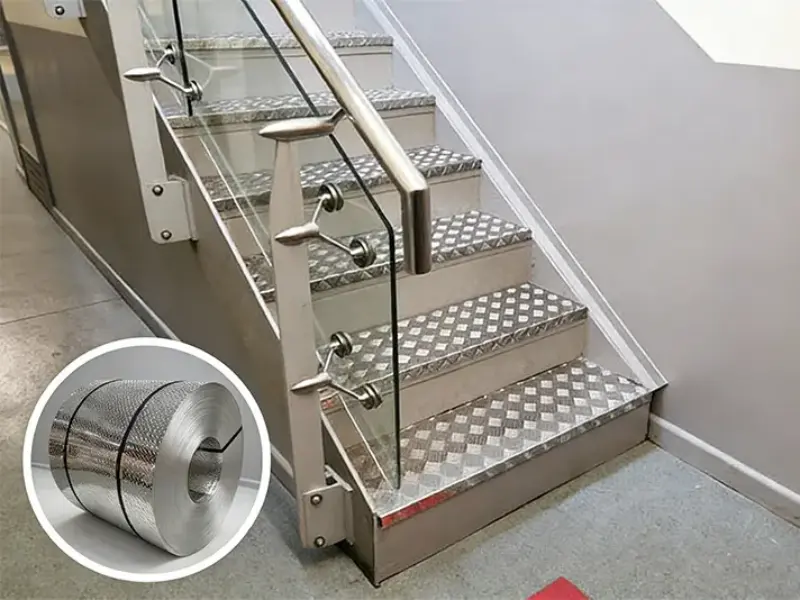

- Stair treads and walkways.
- Corner guards for hospital walls.
- Elevator floor panels.
- Marine and Offshore:
- Boat decks and gangways.
- Floating docks and piers.
- Engine room flooring.
- Commercial Design:
- Shopfitting and bar fronts.
- Gym wall protection.
- Industrial-style furniture.
Comparison: Aluminum vs. Steel Tread Plate
Why do most builders prefer aluminum over steel for their tread plates?
| Feature | Aluminum Tread Plate | Steel Tread Plate |
|---|---|---|
| Weight | Very Light (1/3 of steel) | Heavy |
| Rust Resistance | Excellent (Does not rust) | Poor (Needs paint/zinc) |
| Sparking | Non-sparking (Safe for fuel) | Can spark |
| Appearance | Bright and stays shiny | Dull/Grey or Rusty |
| Cost | Higher initial price | Lower initial price |
| Maintenance | Low (Zero painting) | High (Needs constant care) |
Custom Fabrication Services
When you order custom aluminum tread plate sizes, you might need more than just a flat sheet. We provide several fabrication options:
Precision Cutting
We use CNC waterjet or laser cutting to provide exact shapes. This is perfect if you need holes for pipes or specific shapes for vehicle floors.
Bending and Folding
Aluminum tread plate can be hard to bend if it is too thick. We use professional press brakes to create “U” shapes or “L” shapes for corner protectors and steps.
Surface Finishing
- Mill Finish: The natural, bright look of aluminum.
- Polished (Mirror): Extra shiny for decorative use on trucks.
- Powder Coated: We can paint the plate in any color (Black is very popular for modern trucks).
How to Order the Right Plate
To get the best price and performance, follow these steps:
- Measure the Load: If a heavy forklift will drive on it, choose 5.0mm or thicker in Alloy 6061.
- Environment Check: If the plate is near the ocean, always choose Alloy 5052.
- Visual Style: For a rugged look, go with Five-bar. For a sleek look, go with One-bar.
- Quantity: Ordering standard sizes is cheaper, but custom sizes save you labor costs during installation.
Frequently Asked Questions (FAQ)
Which side is measured for thickness?
The thickness is usually measured at the “base” of the plate, not including the height of the raised pattern. For example, a 3mm plate is 3mm thick plus the height of the diamond.
Is aluminum tread plate slippery when wet?
No. The whole point of the pattern is to provide friction. However, if the plate is covered in oil or ice, it can still be slippery.
Can I weld aluminum tread plate?
Yes. Alloys like 3003, 5052, and 6061 are all weldable. You should use the correct filler wire (like 5356 for marine use).
Custom Aluminum Tread Plate Sizes and Patterns
Choosing the right custom aluminum tread plate sizes and patterns makes your project safer and more durable. Aluminum is the perfect material because it is light, strong, and never rusts.
From five-bar patterns for heavy factories to bright polished diamond plates for custom trucks, there is a perfect match for your needs. Contact us today to discuss your specific dimensions and get a quote for your next project!
